Best Mobile Boosting Service

HomeCell Accessories

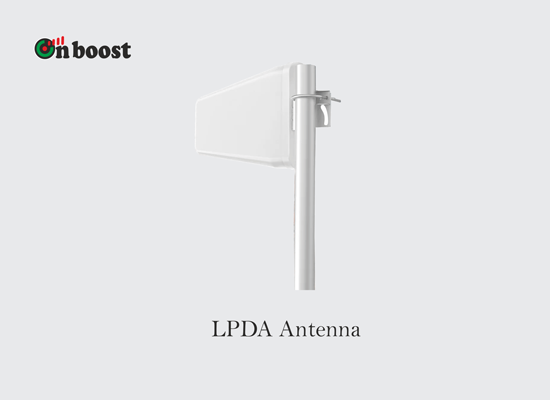

LPDA Directional Antenna Bangalore

LPDA Directional Antenna

Model: OB-L0102DI

Mobile Network booster Outdoor Antenna OB-L0102DI is imperative for receiving signals from the Mobile tower and transmitting strong signals within the premises. Outdoor mobile booster antennas are placed in a suitable open on the roof of the building and are responsible for receiving signals from the nearest Mobile network tower.

Product Information
Model OB-L0102DI
Weight 850g
Frequency 800 MHz - 3500 MHz
Connector N (F)
Impedance 50 Ohm
Gain 12-18dBi
Maximum Input Power 50w

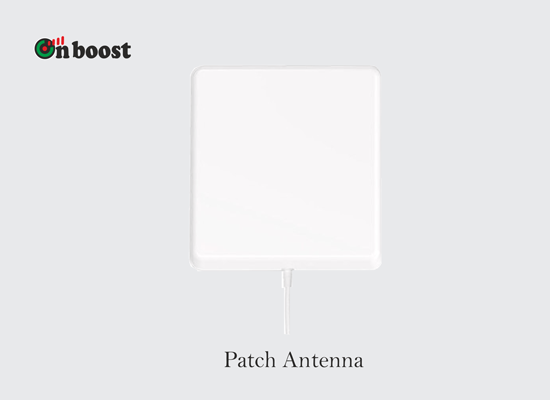

LPDA Pannel Patch Antenna Bangalore

LPDAPannel Patch Antenna

Model: OB-P0708DI

Mobile Network booster panel Antenna OB-P0708DI is imperative for receiving signals from the Mobile tower and transmitting strong signals within the premises. Outdoor mobile booster antennas are placed in a suitable open on the roof of the building and are responsible for receiving signals from the nearest Mobile network tower.

Product Information
Model OB-P0708DI
Weight 450g
Frequency 800 MHz - 2500 MHz
Connector N (F)
Impedance 50 Ohm
Gain 7-8dBi
Maximum Input Power 50w

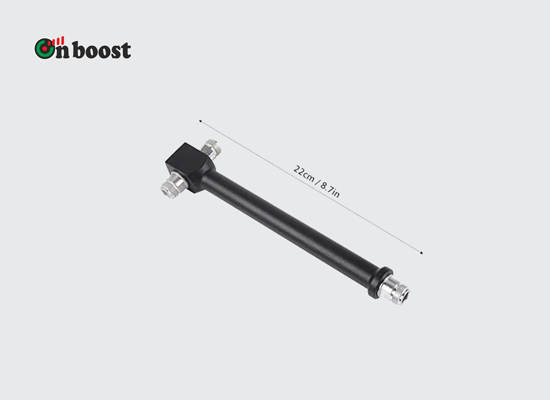

2-Way Splitter Bangalore

2-Way Splitter – installing an additional Indoor antenna to boost the Network.

Model: OB-SPL201

2 Way Splitter OB-SPL201 for Mobile Network Signal Boosters is a signal-splitting device on any premise. The accessory is often used when network boosters are installed in a larger building/area with multiple rooms in different directions.

Product Information
Model OB-SPL201
Weight 213g
Frequency 800 MHz - 2500 MHz
Connector N (F)
Characteristic Impedance 50 Ohm
Temperature -30C To +75C

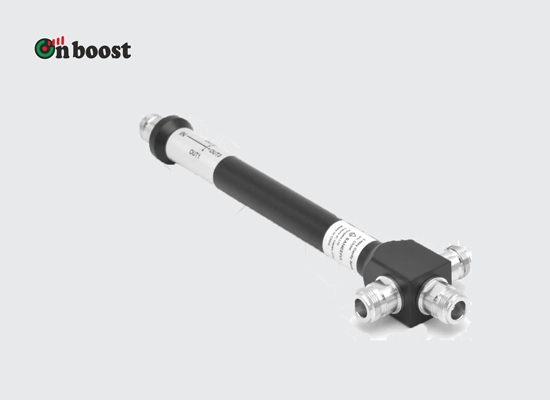

3-Way Splitter Bangalore

3-Way Splitter – installing an additional Indoor antenna to boost the Network.

Model: OB-SPL301

3 Way Splitter OB-SPL301 for Mobile Network Signal Boosters is a signal-splitting device on any premise. The accessory is often used when network boosters are installed in a larger building/area with multiple rooms in different directions.

Product Information
Model OB-SPL301
Weight 213g
Frequency 800 MHz - 2500 MHz
Connector N (F)
Characteristic Impedance 50 Ohm
Temperature -30C To +75C

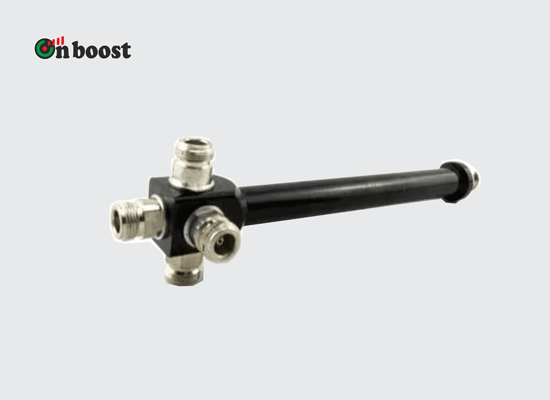

4-Way Splitter Bangalore

4-Way Splitter – installing an additional Indoor antenna to boost the Network.

Model: OB-SPL401

4 Way Splitter OB-SPL401 2G, 3G, 4G/5G for Mobile Network Signal Boosters is a signal-splitting device on any premise. The accessory is often used when network boosters are installed in a larger building/area with multiple rooms in different directions.

Product Information
Model OB-SPL401
Weight 213g
Frequency 800 MHz - 3500 MHz
Connector N (F)
Characteristic Impedance 50 Ohm
Temperature -30C To +75C

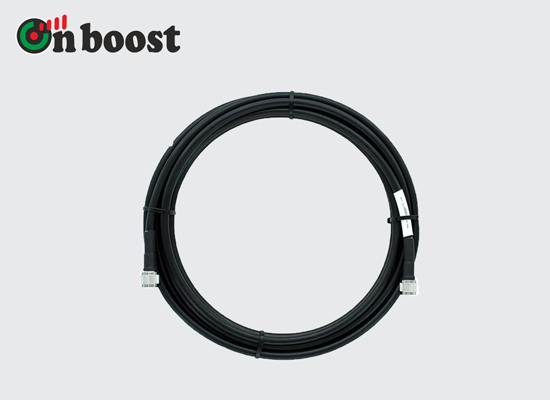

Coaxial Cable OB Bangalore

Coaxial Cable OB - 300LMR

Model: OB-300LMR

Cable OB-300LMR for network signal boosters is a part of essential accessories and plays a vital role in the installation of signal booster for cell phones. They enable the mobile signal antenna to send and receive stronger signals by acting as a connecting medium between the network booster device, internal antenna and external antenna.

Product Information
Model OB-300LMR
Outer Diameter 0.300in
Impedance nominal 50 Ohm
Velocity of Prop 85%
Shielding >90
Centre Conductor Solid
Delay (ns/ft) 1.2
Attenuation K1 (db/100ft)@23deg 0.12229
Attenuation K2 (db/100ft)@23deg 0.12223
Coaxial Cable in Bangalore

Coaxial Cable OB-400LMR

Model: OB-400LMR

Cable OB-400LMR for network signal boosters is a part of essential accessories and plays a vital role in the installation of signal booster for cell phones. They enable the mobile signal antenna to send and receive stronger signals by acting as a connecting medium between the network booster device, internal antenna and external antenna.

Product Information
Model OB-300LMR
Outer Diameter 0.405in
Impedance nominal 50 Ohm
Velocity of Prop 86%
Shielding >90
Centre Conductor Solid
Delay (ns/ft) 1.2
Attenuation K1 (db/100ft)@23deg 0.12229
Attenuation K2 (db/100ft)@23deg 0.12223
